Canon extension

Canon extension

Replicate Kafka across any vendor mix, with offsets every instance agrees on, schemas that travel with records, and failover you can actually rehearse.

Built by Cirata | Tech Preview

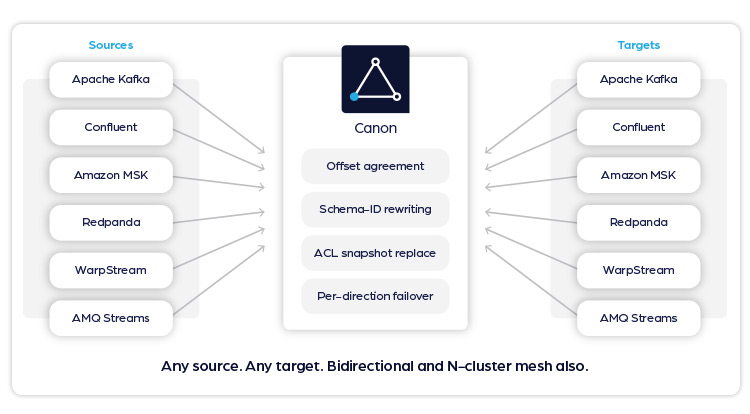

Replicates across the Kafka estate you actually have

Canon doesn't pick sides. Standard Kafka clients on either end mean any vendor that speaks the protocol is a valid source, a valid target, or both, including bidirectional active-active and N-cluster mesh topologies with target-aware loop prevention built in.


Sources & targets:
Apache Kafka · Confluent Cloud & Platform · Amazon MSK · Redpanda · WarpStream · Red Hat AMQ Streams · IBM Event Streams · any Kafka-protocol broker


Replicates:
Records (with offset-pair agreement) · consumer-group offsets · schemas (Confluent-compatible Schema Registry) · topic configs · ACLs (with delete propagation)

Replicates across the Kafka estate you actually have

What it does

  • Replicate Kafka across vendors, Apache, Confluent, MSK, Redpanda, WarpStream, with the same extension and ordinary clients.
  • Agree every (source, target) offset pair across every Canon instance before the source commit lands, so failover translation gives the same answer from every control-plane path.
  • Carry schemas with records, auto-push to the target registry and rewrite Confluent wire-format IDs in flight, one switch per link.
  • Replicate ACLs with snapshot-replace semantics, so revoked permissions actually disappear on the target.
  • Fail over with a per-direction ceremony you can drain, complete, restore, and rehearse in drills before the disaster.

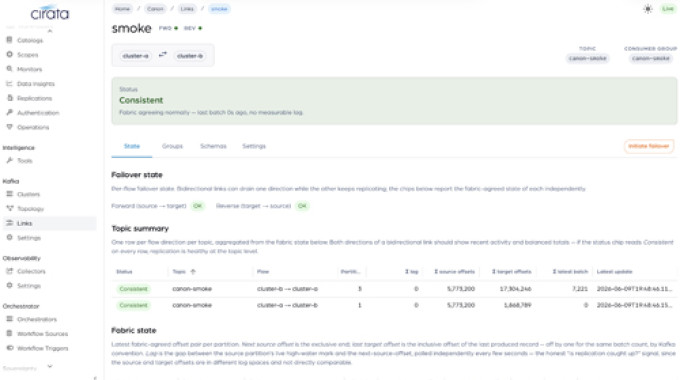

What it does screenshot 1

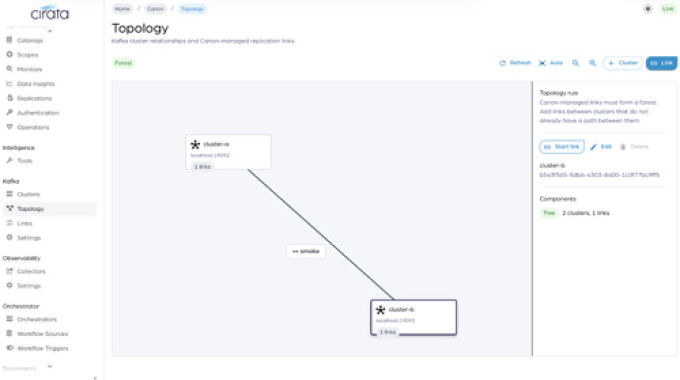

What it does screenshot 2

Use cases

Cross-vendor disaster recovery

Fail over from Confluent to MSK, from Apache to Redpanda, or between regions of either, with a rehearsable per-direction ceremony, fabric-agreed offset translation, and an audited activity log a regulator can actually read.

Kafka migration without lock-in

Move from one Kafka vendor to another at your pace. Run both sides live, replicate either direction, cut consumers over when the offsets, schemas, and ACLs all match, no Connect cluster, no operator-built audit story.

Active-active across vendors

Run bidirectional links with target-aware loop prevention, so a record that's already visited a cluster doesn't visit it again. N-cluster mesh is a first-class topology, not a sharp edge.

Regulated-industry evidence

Answer the auditor's question, can you evidence cross-vendor failover, schema lineage, and ACL governance? With a verifiable trail of every replication decision. Built for DORA, Basel III, NYDFS Part 500, and APRA CPS 230.


How it works

Link

Define a link between any two Kafka clusters in the Symphony UI. Standard Kafka credentials on each side; Canon handles the rest.

Agree

Every Canon instance agrees each (source, target) offset pair, schema mapping, and ACL snapshot through a consensus-backed fabric before the source commit lands.

Operate

Drain, fail over, restore, and rehearse from the UI, REST, CLI, or any MCP-speaking agent. The same contract drives every operation.


Technical details

Replication model Standard Kafka clients on both ends, idempotent producer (optional transactional path); source offset committed only after fabric agreement.
Consensus DConE (Multi-Paxos), in-process; one replicated state machine per logical link; per-direction failover state keyed on (linkId, direction).
Topologies Unidirectional, bidirectional active-active, and N-cluster mesh — with target-aware loop prevention via the canon.origin-chain header.
Replicates Records, consumer-group offsets (timestamp-anchored), schemas (Confluent wire-format ID rewriting), topic configs, ACLs (snapshot-replace with delete propagation).
Sources & targets Any Kafka-protocol broker, Apache Kafka, Confluent Cloud & Platform, Amazon MSK, Redpanda, WarpStream, AMQ Streams / IBM Event Streams.
Operator surface UI, REST, CLI, and MCP over one OpenAPI contract (20 operations); 16 pages of in-app help; observability counters, gauges, and traces propagated across Kafka and messaging.
